2015-2026 F-150 2WD/4WD Performance Lowering System

Description

Lower your 2015-2026 Ford F150 up to 3 inches up front and 5.5 inches in the rear with Ridetech lowering suspension system. More than a lowering kit, system will turn your vehicle into a high-performance muscle truck with better stance, handling and ride quality. This 2015-2026 F-150 2WD/4WD Ridetech Performance Lowering System is designed to transform your truck’s performance and appearance.

The Ridetech lowering kit is 100% bolt-on, fully adjustable and made in the USA. It includes everything you need to lower your Ford F150 platform. Includes front upper control arms, front coil-overs, flip bracket kit, and rear HQ series shocks & hardware.

Lowered stance

• • Adjustable ride height
  • 1.5″ – 3” front drop
  • 3.5″ – 5.5” rear drop

Improved ride quality & sharper handling

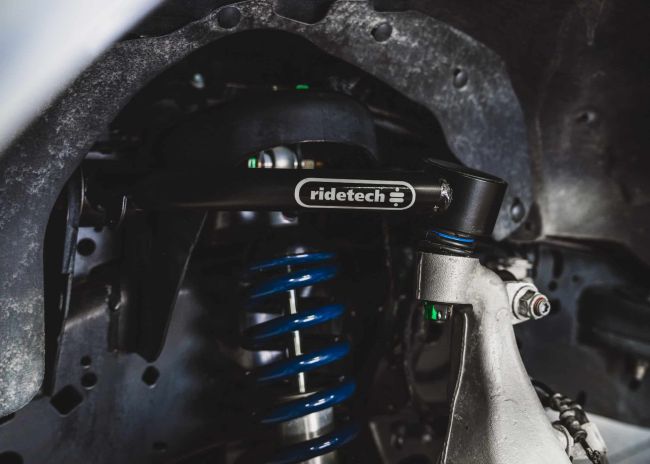

New tubular upper control arm provides camber and caster improvements at lower ride height to improve handling

Adjustable Ridetech / Fox Shocks

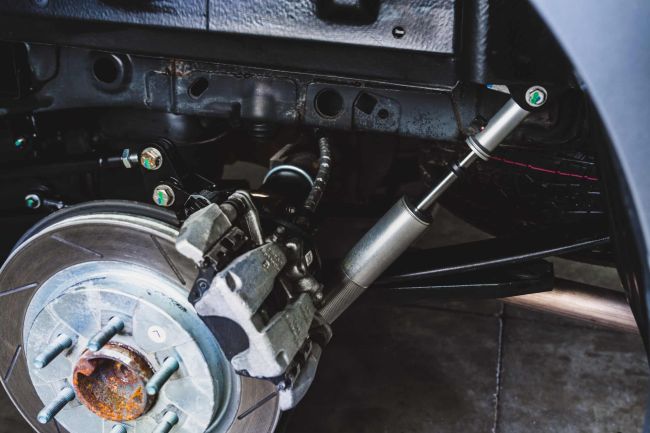

• • Coil-over front / HQ Series rear
  • Aluminum Body
  • Mono tube / gas pressure
  • Adjustable valving
  • 1,000,001-mile warranty

Bolt-on installation

• • No welding

Adjustable ride height

• • Front coil-overs adjustable spring seats
  • Rear leaf shackles offer 2” of adjustment

Optional Upgrades Explained:

• Traction bars eliminate nearly all wheel hop while still allowing for full load capacity and smooth compliant ride. Required on supercharged trucks, prevents axle wrap in higher horsepower trucks with stickier tires during hard acceleration.
• Rear sway bar dramatically increases cornering capabilities and allows additional fine-tuning and balance control of your F-150. Includes sway bar, end links, and frame mounts w/ Delrin inserts. Only compatible with Ridetech equipped trucks.
• Rear air assist / load leveling air springs and mounts – Maintain your load capacity while lowered with Ridetech’s Air Assist Kit for 2015-2026 F-150. For use with Ridetech lowering system. Includes air springs, brackets, hardware & fill kit.
• Headlight Sensor Brackets – Some 21-26 F-150’s are equipped with 2 height sensors that control the direction of the headlights (one on driver side front and one on driver side rear), sensors must be relocated to maintain function.
• Onboard Scale Sensor Brackets – Some 21-26 F-150’s are equipped the “Onboard Scale” option which uses 4 height sensors (one at each wheel) that will inform the driver of the current payload status, sensors must be relocated to maintain function.

Fitment Notes:

• Trucks equipped with two height sensors on driver side only (Headlight Sensors option) require bracket kit Part # 12299501
• Trucks equipped with four headlight sensors (On-board Scale option) require bracket kit Part # 12299502
• Compatible with BlueCruise & Powerboost equipped trucks

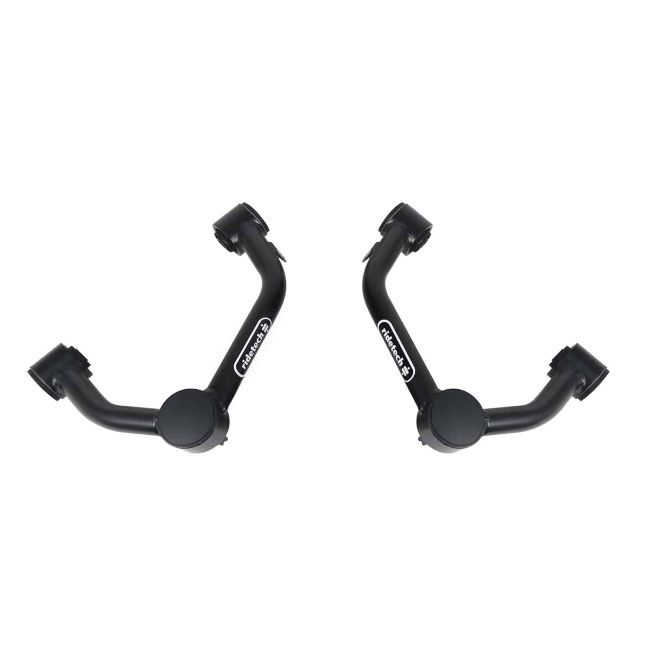

• Front Upper Control Arms
